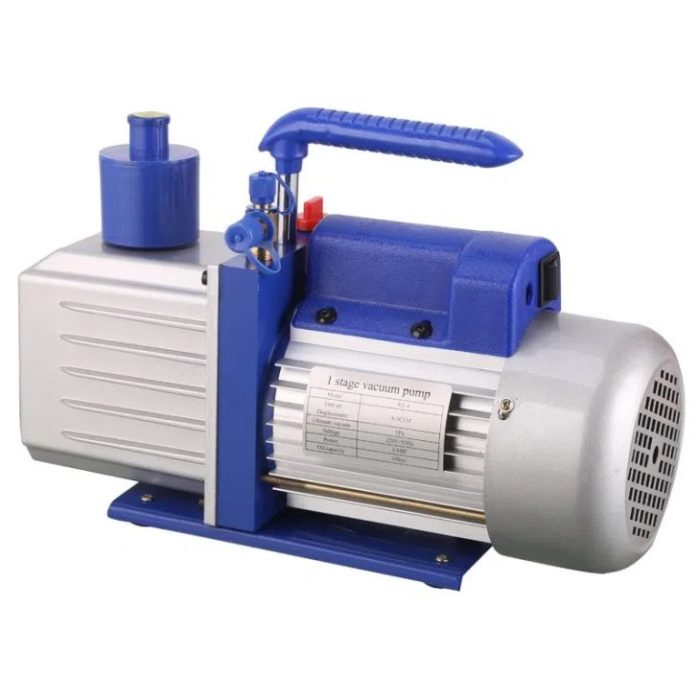

Single Stage Vacuum Pump Model JS-6

Available shipment from China

Description

Model		JS-1		JS-1.5		JS-2		JS-3		JS-4		JS—6
Voltage		110V	220V	110V	220V	110V	220V	110V	220V	110V	220V	110V	220V
Voltage		60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz
Free Air Displacement (FAD)	CFM	3	2.5	4	3.5	5	4.5	7	6	9	8	12	10
Ulitimate Vacuum	PA	5		2		2		2		2		2
Ulitimate Vacuum	m	15		15		15		15		15		15
Rotating Speed	rpm	1720	1440	1720	1440	1720	1440	1720	1440	1720	1440	1720	1440
Power	HP	1/4		1/3		1/3		1/2		3/4		1
Oil Capacity	ML	220		225		250		250		300		450
Dimension	mm	260x110x240		275x115x240		290x120x240		310x125x255		360x135x270		430x142x280
Weight G.W	KG	6		6.5		9.5		10		11		19

JSA vacuum pump produces pump’s base with a heavy duty aluminum alloy shell and copper wire motor, which is more stable and higher performance.
The non-slip rubber feets will increase stability of the pumps during operation.
The 1/4" oil inlet port fits for most of the manifold gauges.
Oil viewing window will let users quickly monitor oil levels and prevent of oil deficiency.
The pump is equipped with an ergonomic grip handle that make it easy to carry pump.
