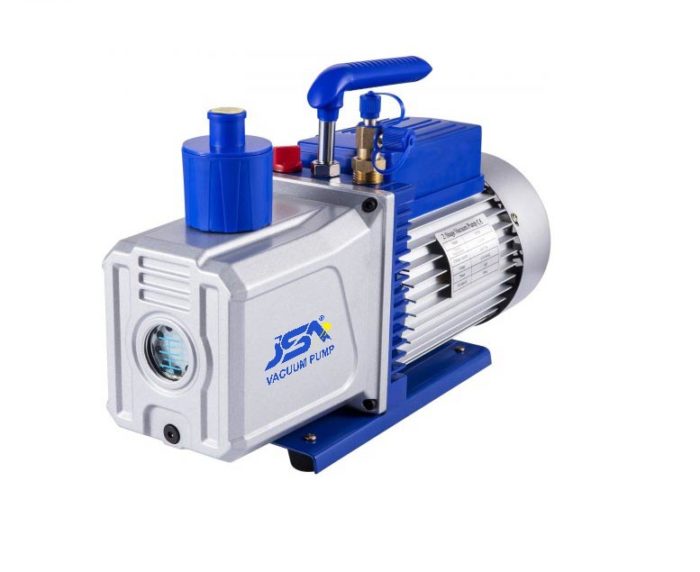

Double Stage Vacuum Pump Model 2JS-4

TECHNICAL SPECIFICATION:
MODEL: 2JS-4
FREE AIR DISPLACEMENT: 12CFM, 10CFM
ULTIMATE VACUUM : 2×10^-1PA, 0.05Mbar
VOLTAGE: 110V/60HZ,220V/50HZ
POWER: 1HP

Get the price

Available shipment from China

  • Done Satisfaction Guaranteed
  • Done CE approved
  • Done High Quality

Description



Model 2JS-0.5 2JS-1 2JS-1.5 2JS-2 2JS-3 2JS-4 2JS-5
Voltage 110V 220V 110V 220V 110V 220V 110V 220V 110V 220V 110V 220V 110V 220V
60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz
Free Air Displacement (FAD) CFM 2 1.5 3 2.5 4 3.5 5 4.5 7 6 12 10 14 12
Ulitimate Vacuum PA 2x 10^-1Pa
m 1.5micron
Rotating Speed rpm 3500 2800 3500 2800 3500 2800 3500 2800 3500 2800 1720 1440 1720 1440
Power HP 1/4 1/3 1/3 1/2 3/4 1 1
Oil Capacity ML 250 250 330 330 370 550 550
Dimension mm 280x110x215 280x110x215 290x115x220 290 x 115 x220 360 x 135×275 430x142x280 430x142x280
Weight G.W KG 8.5 9 9.5 10 12.5 20 22

High-quality Vacuum Pump

  • JSA vacuum pump produces pump’s base with a heavy duty aluminum alloy shell and copper wire motor, which is more stable and higher performance.
  • The non-slip rubber feets will increase stability of the pumps during operation.
  • The 1/4" oil inlet port fits for most of the manifold gauges.
  • Oil viewing window will let users quickly monitor oil levels and prevent of oil deficiency.
  • The pump is equipped with an ergonomic grip handle that make it easy to carry pump.



Commercial and Household applications:

  • Food packing and food processing
  • HVAC (Air Conditioner Refrigerant Recovery, R410a)
  • AUTO AC tool (R134a)
  • Wine Degassing
  • Automatic Milking
  • printing machine vacuum pump
  • Phone laminating machine
  • Laboratory vacuum pump
  • suitable for cleaning a household air conditioner
  • Automobile maintenance vacuum pump
  • Vacuum packaging
  • Refrigerator vacuum
  • Wood stabilizing
